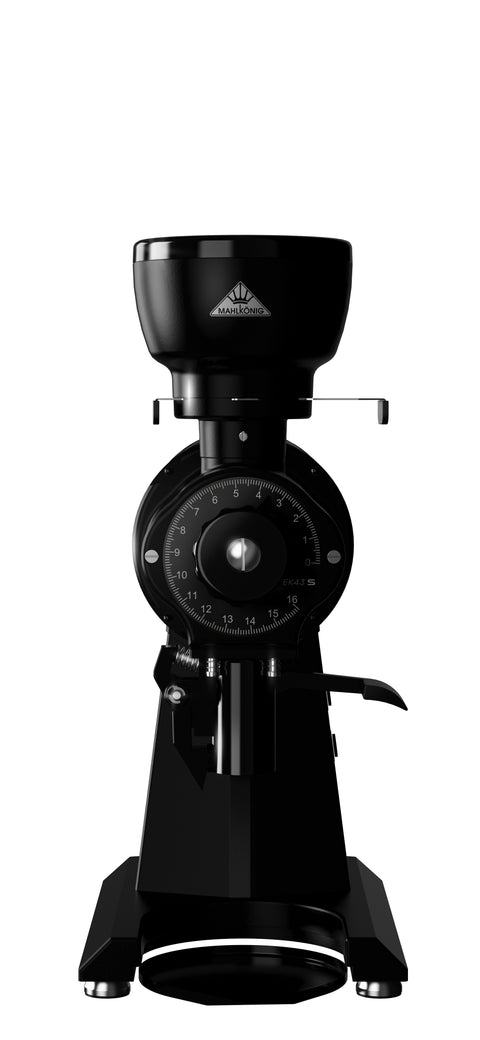

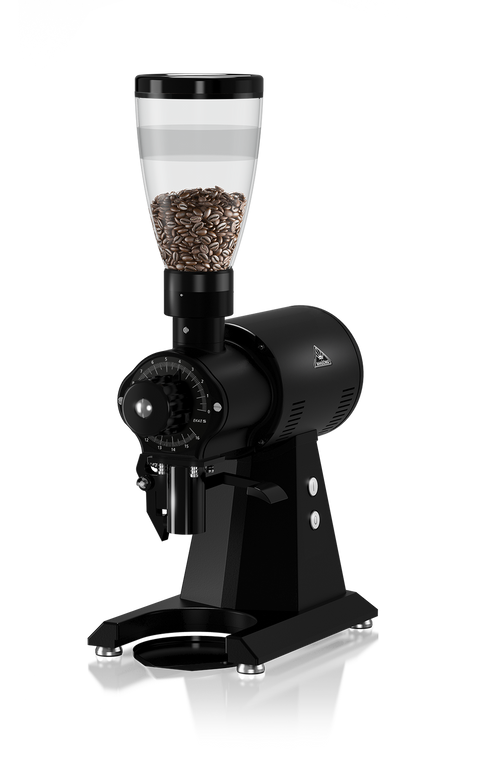

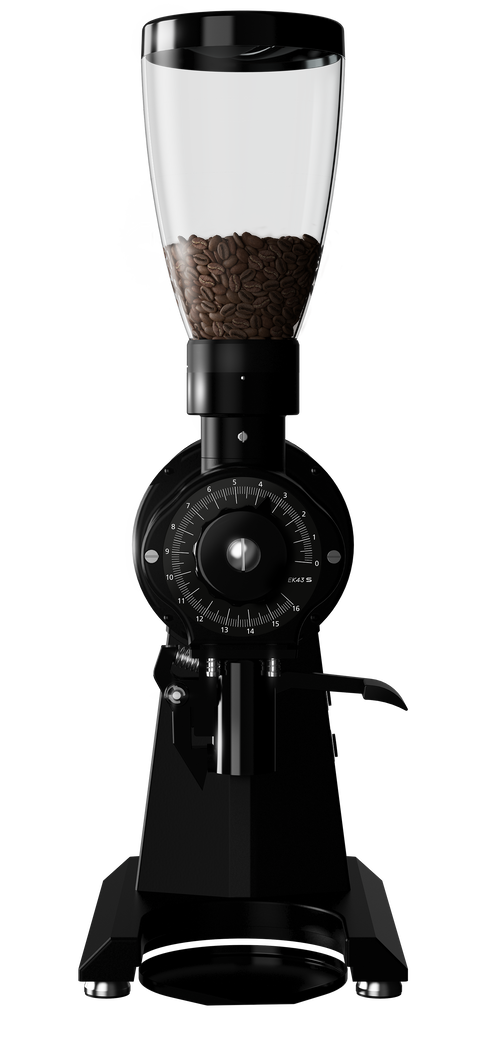

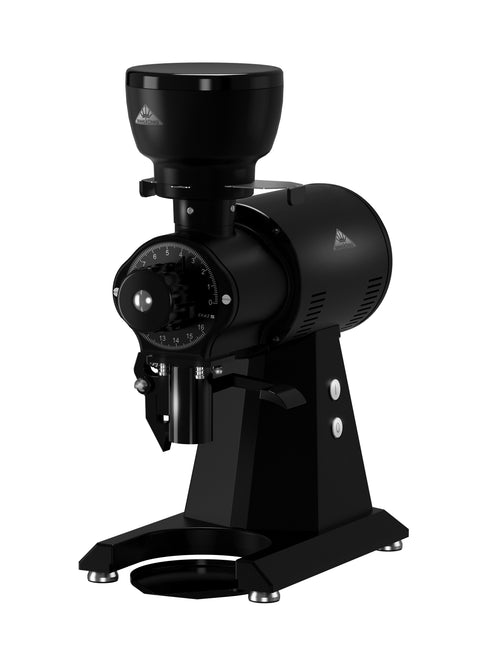

Mahlkonig EK 43 S

The EK43 S provides the powerful performance of Mahlkönig’s famous EK43 within a space-saving body, that finally brings premium coffee grinding to the smaller coffee bars, too. The EK43 rules the international coffee specialty industry as the undisputed queen of coffee grinders - with high performance, reliability and premium grinding results. Its outstanding grinding profile remains unmatched. The EK43 provides the most even extraction of the coffee’s valuable aroma and is known to be a guarantor for an outstanding taste experience and a symbol for quality. Its special shape has become an icon within the international barista scene, which feels deeply connected to the EK43 by its shared passion for coffee.

• Details

  • The performance and grinding results of the established EK43 within a smaller space-saving body

  • Outstanding particle size spreads feature high extraction rates and the best possible taste

  • Premium cast steel burrs

  • Robust small grinder with high grinding capacity

  • Suitable for different applications: filter, espresso, or turkish fine coffee grinding

  • Easy and precise grind adjustment

  • Bag holder

Technical Details

Voltage // frequencies // phases:

• 200-240 V // 50/60 Hz // 1~
• 100-120 V // 50/60 Hz // 1~

Idle speed: 1450 rpm (50 Hz); 1760 rpm (60 Hz)
Burr diameter:  98 mm
Burr material:  Cast steel
Burr grind life (median setting): ca. 6.000 kg
Average grinding capacity*: 19-21 g/s
Average grinding capacity Turkish fine*: 10-12 g/s
Bean hopper capacity:  approx. 800 g
Max. nominal power:  1300 W
Dimensions (w x h x d):  23 x 68 x 41 cm
Dimensions of packing (w x h x d):  37 x 58 x 71 cm
Net weight:  24.5 kg
Gross weight:  28.5 kg
Certifications:  CE, CB, ETL Safety, ETL Sanitation

Standards:

• IEC/EN 60335-1

• IEC/EN 60335-2-64

• ANSI/UL 763

• CSA-C22.2 No. 195

Standard colors:

• Fine textured finish, matte black

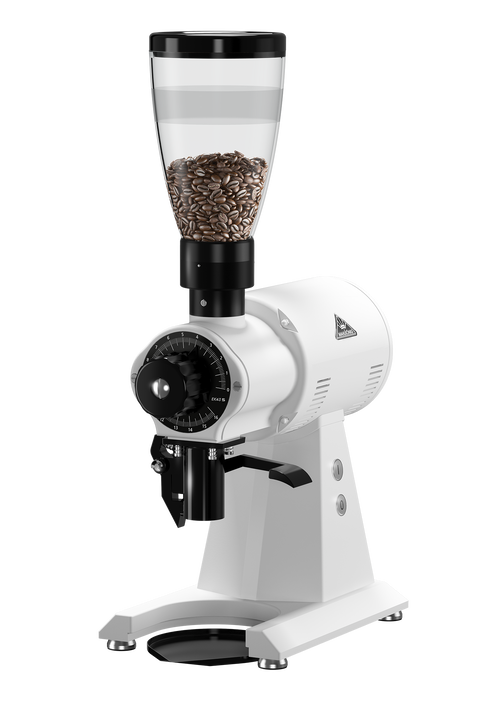

• Fine textured finish, matte white

Special Equipment

• 98 mm premium cast steel burrs for turkish fine (EK43 ST) grinding and pre-breaker for decreased grind speeds

• 98 mm premium cast steel burrs for linseed (EL43) and poppy seed (EM43) grinding and pre-breaker for non-coffee grinding

• 98 mm premium cast steel burrs for grain (EG43) and spice (EP43) grinding, grinder housing cover and adjusting spindle for extended grind size range and pre-breaker for non-coffee grinding

Optional accessories

• Bean hopper with spring-loaded hopper slider approx. 250 g
