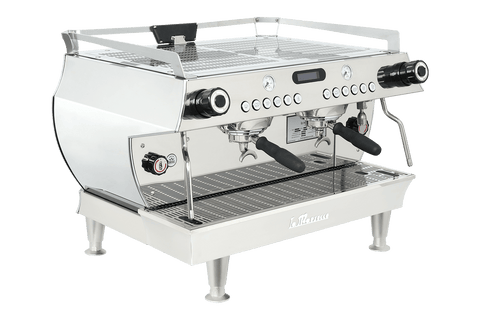

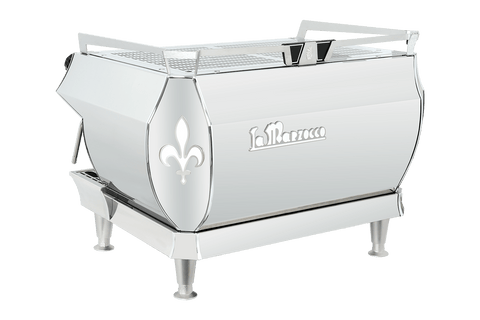

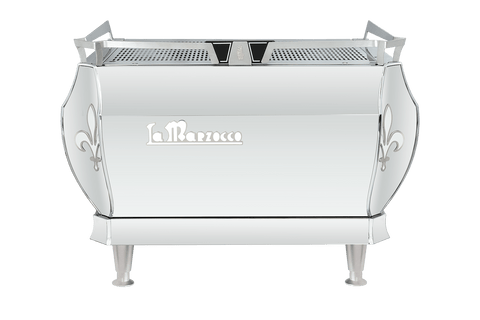

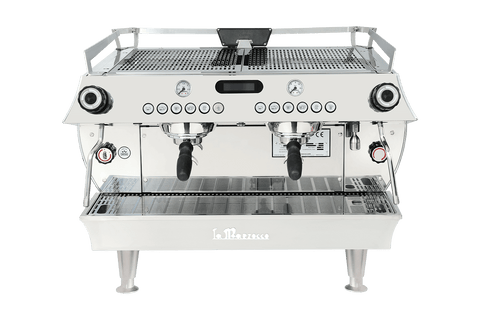

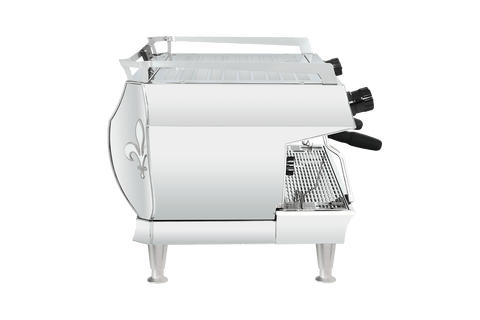

La Marzocco GB5 X
essential features
dual boilers
Separate boilers optimize espresso brewing and steam production.
dual pid (coffee and steam)
Allows you to electronically control coffee and steam boiler temperature.
insulated boilers
Reduce energy consumption while contributing to temperature stability.
piero group caps – av, abr
Re-engineered internal water path and flow-meter positioning that increase temperature stability.
24v electronics
New generation of electronics for improved reliability and machine diagnostics.
independent saturated boilers
Separate saturated boilers for each group head allow barista to optimize temperature for individual coffees, ensuring thermal stability.
pro touch steam wands
High performing steam wands that are cool to the touch.
digital display
Intuitive programming makes it easy to adjust machine parameters.
hot water economizer
Enables you to fine-tune the tap water temperature for tea.
integrated scales – abr only
Precision scales built in the drip tray with the Drip Prediction technology provide a new level of consistency.
high legs – special order
Makes it easier to access beneath the machine.
easy rebuild steam valve
Engineered so the valve can be serviced directly from the front of the machine without needed to be removed.
usb
Making it possible to update the firmware.
dimmable barista lights
3-stage customizable intensity led lights for Eco, On and Brewing modes.
eco mode
Can be programmed to enter stand-by mode, improving energy efficiency.
cup warmer – special order
Maintain espresso and cappuccino cups evenly heated at a proper temperature.
personalized colors – special order
Customizable colors based on the RAL color system, on request.
pro app compatible
Electronic board that will allow connectivity with the La Marzocco Pro App, available in Mid-2021.
technical specifications
| Specifications | 2grp | 3grp | 4grp |
|---|---|---|---|
| Height (cm/in) | 47 / 18,5 | 47 / 18,5 | 47 / 18,5 |
| Width (cm/in) | 77 / 30 | 97 / 38 | 121 / 47,5 |
| Depth (cm/in) | 64 / 25 | 64 / 25 | 64 / 25 |
| Weight (kg/lbs) | 70 / 154 | 91 / 200 | 120 / 264,5 |
| Voltage | 200V Single Phase 220V Single / 3 Phase 380V 3 Phase |
200V Single Phase 220V Single / 3 Phase 380V 3 Phase |
200V Single Phase 220V Single / 3 Phase 380V 3 Phase |
| Wattage (min) | 3330 | 5830 | 6725 |
| Wattage (max) | 5670 | 7785 | 9470 |
| Coffee Boiler Capacity (liters) | 2 x 1,3 | 3 x 1,3 | 2 x 3,4 |
| Steam Boiler Capacity (liters) | 7 | 11 | 15 |
